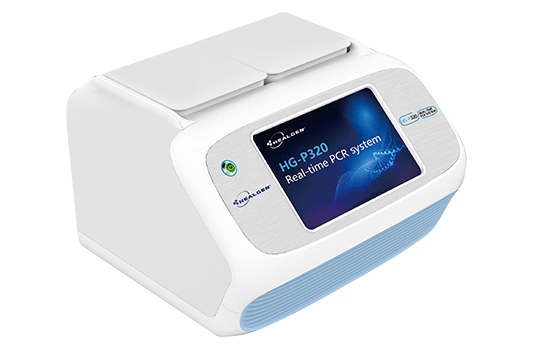

HG-P320 Real-time PCR System

Catalog Number

MRQP06-E

Introduction

4 channels, 32wells

The HG-P320 real-time PCR system uses semiconductor technology to quickly implement the PCR amplification process, and uses a high-sensitivity photoelectric detection system to detect the fluorescence signal in real time, and analyzes and processes it through powerful analysis software.

Features

1.4 channels and double 16-well blocks design, can run two different programs at the same time.
2.Small size, light weight, easy to carry.
3.Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotype, etc.
4.4.7-inch high-definition TFT color touch screen, and embedded win10 operating system.
5.The experimental results can be printed directly or exported.

Parameters

Sample Capacity	32 wells	Measurement Channel Number	4 channels
Reaction Volume	15-100μl	Uniformity	±0.25℃
Temperature Fluctuation	±0.1℃	Excitation Wavelength	460nm-650nm
Accuracy	±0.25℃	Sensitivity	1 copy
Emission Wavelength	500nm-720nm	Weight	6.5Kg

*Contract manufacturer for Healgen Scientific Limited Liability Company
