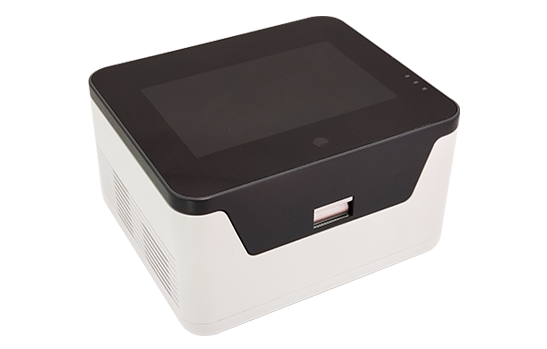

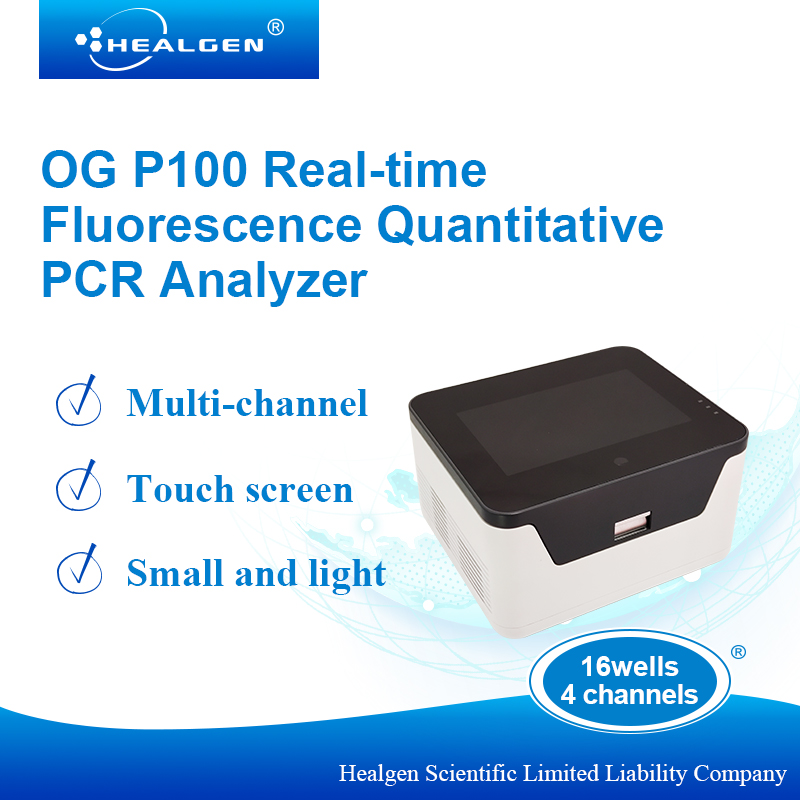

OG P100 Real-time Fluorescence Quantitative PCR Analyzer

Catalog Number

MRQP01-E

Introduction

4 channels, 16 wells

A real-time PCR instrument capable of quantitative detection by fluorescent emission. Equipped with integrated display and intuitive user interface, the OG P100 provides convenience in experimentation.

Features

1.Simple calibration process
2.10 inch screen is easy to operate and space saving
3.Matching general consumables, easy to use
4.Independent research and development, flexible combination and customization
5.Multi-channel qPCR detection, melting curve and data analysis management.
6.All instrument setup and analysis functions are controlled by an intuitive, easy-to-use software interface for fast experiment setup and data analysis.

Parameters

Sample Capacity

16 wells

Temperature Uniformity

±0.1℃

Reaction Volume

20-50μl

Excitation Wavelength

460nm-720nm

Tube Formats

0.2mL

Measurement Channel Number

4 channels

Max Ramp Rate

8℃/s heating;

4℃/s cooling

Weight

2Kg

Temperature Accuracy

±0.2℃

Power Supply

Adapter 110V/240V AC

*Contract manufacturer for Healgen Scientific Limited Liability Company

Operation video
