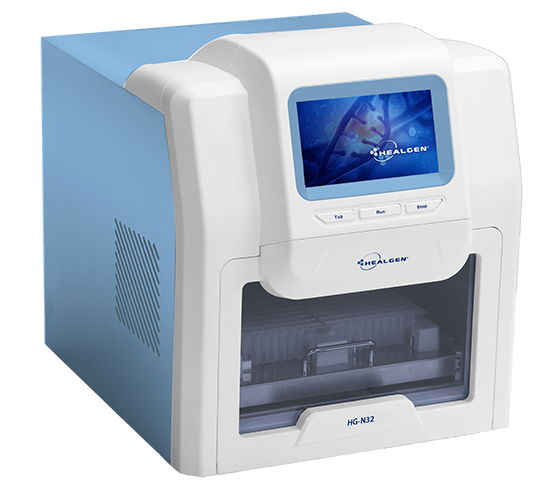

HG-N32 Series Nucleic Acid Purification System

Catalog Number

MNAP01-E

Introduction

The Auto-Pure instrument series are bench top devices for DNA and RNA purification by using magnetic separation technology from samples, such as blood, cultured cells, bacteria, cell-free body fluids and plants. The device utilizes magnetic rods to transfer particles the purification phases of binding, mixing, washing and elution. The automatic workflow is optimized to minimize hands-on time.

Features

1.Automatic Purification Method

2.7 inch touch screen intuitive operation

3.15-40 minutes extraction protocol

4.Sample Volumes up to 1mL, 3mL and 5mL

5.Open system to support various extraction kits

6.one top operation to avoid contamination

Parameters

Principle

Magnetic Particle Method

Dimension

400mm×470mm×450mm

Throughput

1-32

Weight

28Kg

Sample Volume

20μl-1000μl

Precision

CV＜5％

Magnetic Rod Number

Exhaust

Fan

Temperature Accuracy

±1℃

Power Supply

450W

*Contract manufacturer for Healgen Scientific Limited Liability Company
